Fusion Engine - Majacraft Carder

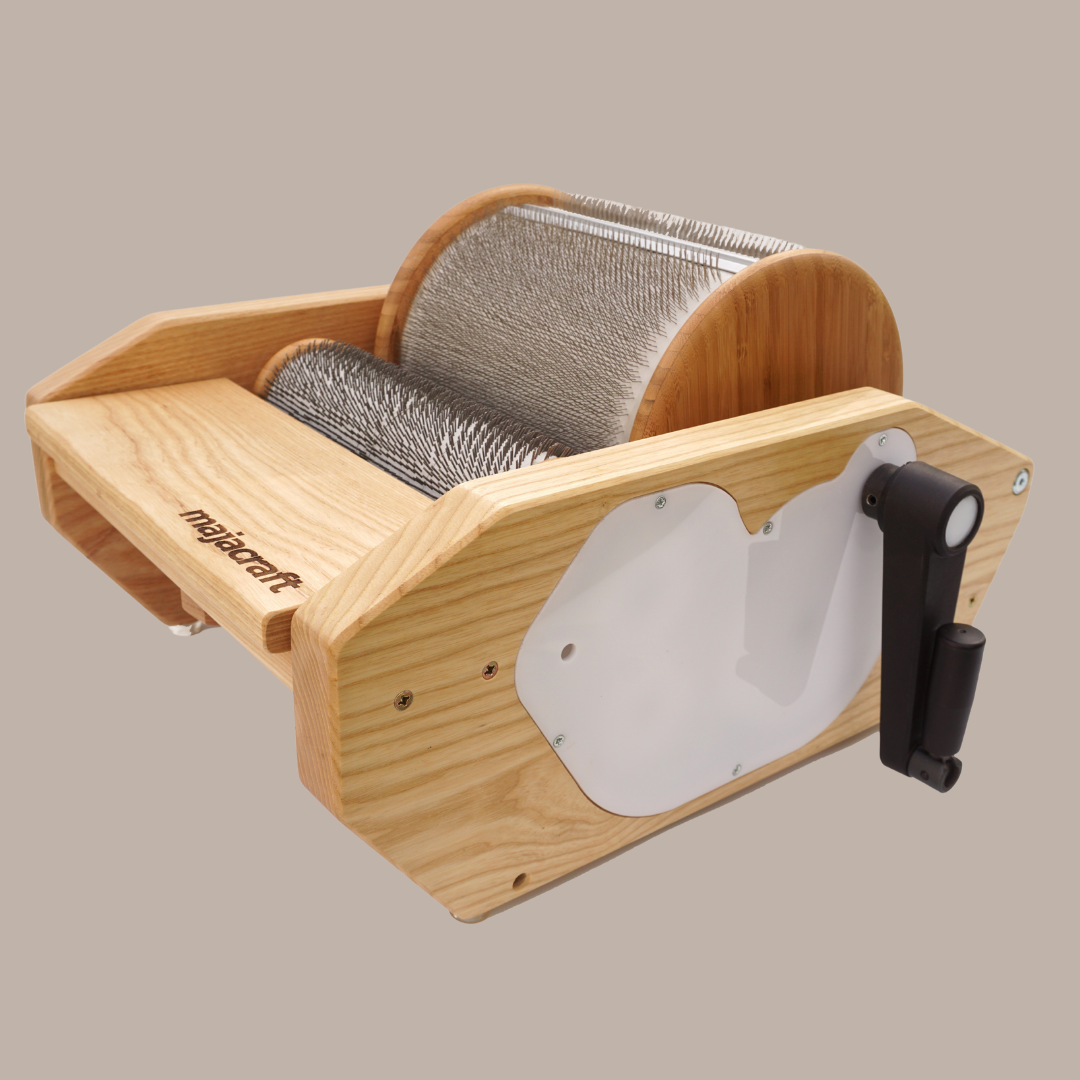

This is the Fusion Engine, Majacraft’s amazing drum carder.

Designed this machine to perform exceptionally, and to reduce or eliminate the common carding issues experienced with other drum carders. The Fusion Engine has a higher and more efficient carding ratio than most carders, so blends fibres more thoroughly with fewer passes.

With no exposed gears or belts, and the unique drum design, fibres do not get where they shouldn’t and cleaning of the carder is minimised.

Removal of the interchangeable drums makes that rare cleaning simple and easy.

Features of the Majacraft Fusion Engine include:

• 8:1 Gearbox

• Adjustable feedtray

• Folding handle

• Great for lefties and righties

• Packer brush

• Cleaner brush, Gentle picker

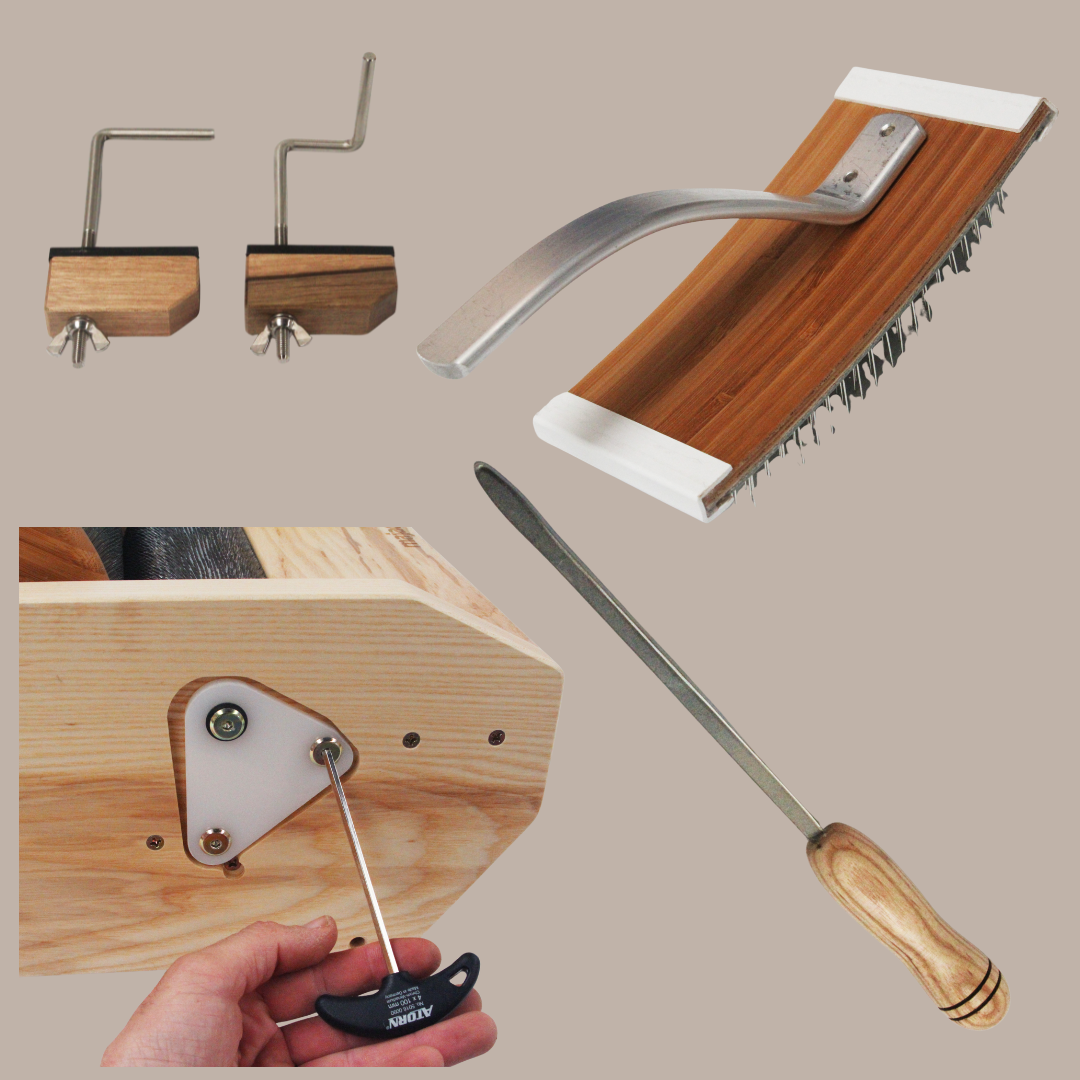

The Fusion Engine carder comes with:

• Fusion Engine carder with one Drum (choice of 128, 96 or 72tpi)

• Picker tool

• Two bench clamps

• Cleaning brush

• Allen T wrench – 3mm

• Allen T wrench – 4mm

The Fusion Engine specifications:

• Length-width-height: 450mm (17.7″) x 340mm (13.4″) x 270mm (10.6″)

• Weight: 8.25kg (18.2lb)

• Main drum diameter: 187mm (7.36″)

• Cloth width: 210mm (8.2″)

• Cloth pitch: 72tpi standard (128tpi available)

• Batt size (approximate): 210mm x 570mm (8.2″ x 22.4″)

Optional extras

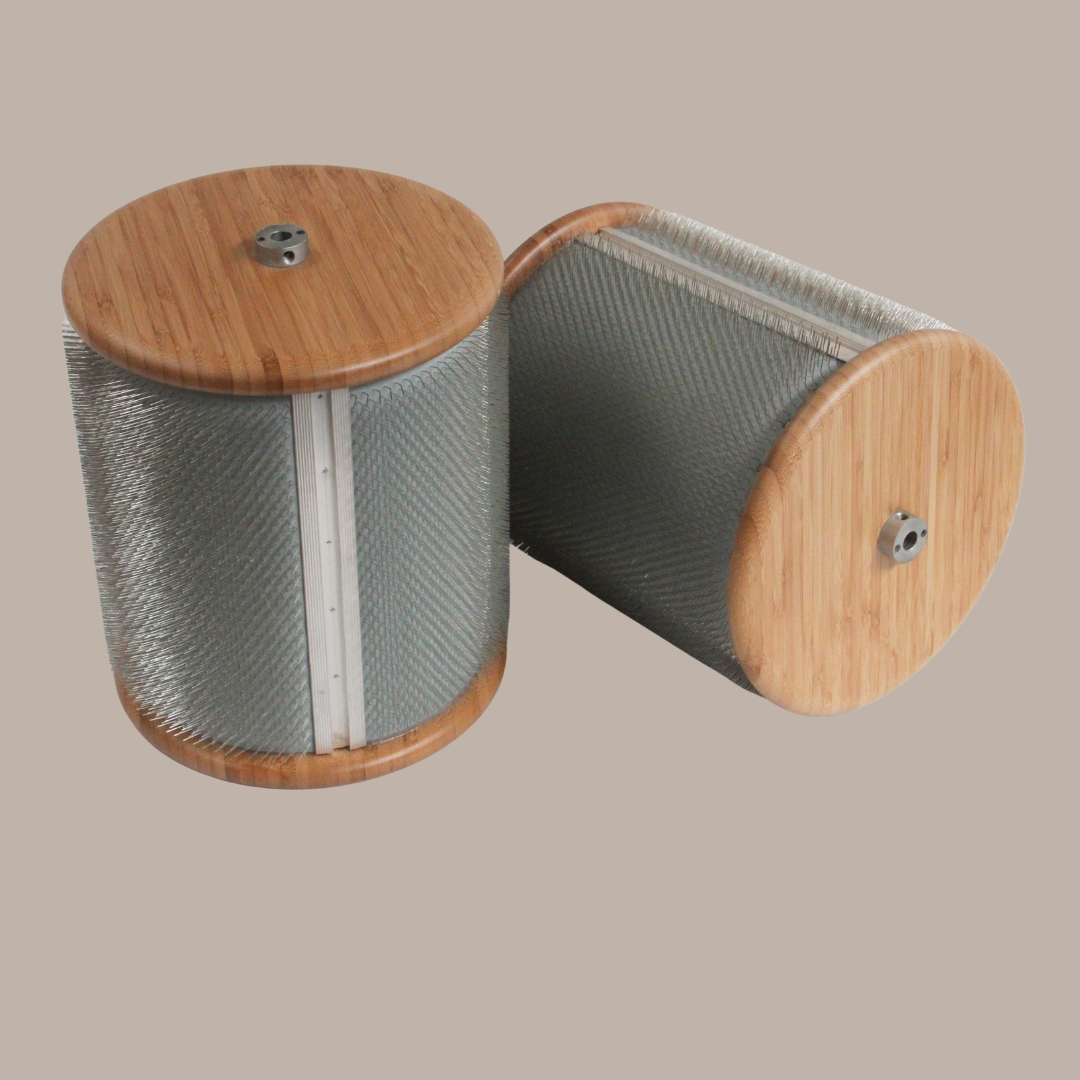

• Main Drums set with options of Tines Per Inch (tpi) - 72tpi, 96tpi and 128 tpi available

• Fusion Engine Carry Bag

• Drum Carry Bag

• Direct Injection Tray
